TILTSEE Tilt Indicators
Time:2024/11/08 14:51:41View:495

TILTSEE tilt indicators

For some instruments that must be kept upright during transportation or handling, the operator is reminded to ensure that

the instrument remains upright and to indicate and record the occurrence of unexpected tilting incidents by placing tilt indication labels.

When the protected instrument tilts more than 80 degrees from the upright Angle,

the small circular window used for display changes from silver white to red to record and display the tilting accident;

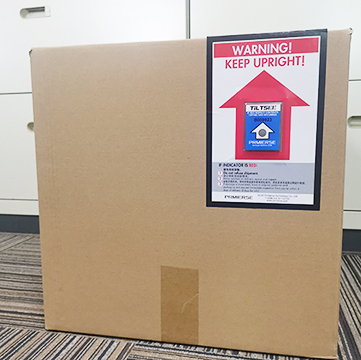

Tilt warning label correct placement: the best placement is the upper left or upper right corner of the goods.



TILTSEE tilt indicators can easily show whether the goods have been tilted, horizontally or upside down during transport or storage,

and monitor whether the storage of the goods meets the storage requirements at all times,

thus effectively preventing and reducing the damage of the goods during transport.


Scope of application

TILTSEE is a better option for those who require that goods must remain upright and intact during transit,

and constantly monitor the storage of goods for compliance with storage requirements.

TILTSEE is a friend of the carrier, and vibration does not cause it to work,

even if the plane's acute takeoff Angle does not cause activation.

Therefore, most of them are used in large precision components, refrigeration equipment, large computer systems,

top-heavy equipment, medical equipment, large glass products and other goods that have strict requirements

for storage location and placement direction in transportation.

Such as the control and monitoring of heavy machinery, large computer equipment, circuit boards, large batteries,

hydraulic presses and other product hosts.

微信圖片_20241125150631.jpg               智能拼音輸入法截圖_20241106120251.png


TILTSEE main specifications:

Main specification

TILTSEE?

Material number

20011

Sensor type

Round stainless steel sheet

Installation method

Tear off the bottom adhesive paper

Serial number barcode

Yes

Indicated inclination

No

Mark tilt reading

No

Reset and reuse

No

Angle of activation

Greater than 80°

Packing quantity

100 PCS/box

Monitoring range

Single plane

Precision

±5° at 20°C / 68°F, 1 standard atmosphere

Operating temperature and humidity

-40° C to 60 ° C /-40°F to 140°F 5-99%RH(relative humidity), non-condensing

Adhesive type

5 mil thick viscous acrylic adhesive

Adhesive shelf life

Two years

Dimension

2.92in x 2.37in x 0.21in /  74.27mm×60.31mm×5.29mm

Constitute

Rigid polystyrene housing non-magnetic steel indicator

Weight

Approximately ~12.2g

Install

Use pressure sensitive adhesive or self tapping screws or gun nails to fasten to the packaging

Customization

Can customize the corporate logo(MOQ number is 5000)
